AHD 1080P Wireless Transmitter System
Convert your Wired Camera to Wireless or Add a Wireless Camera to your Wired System

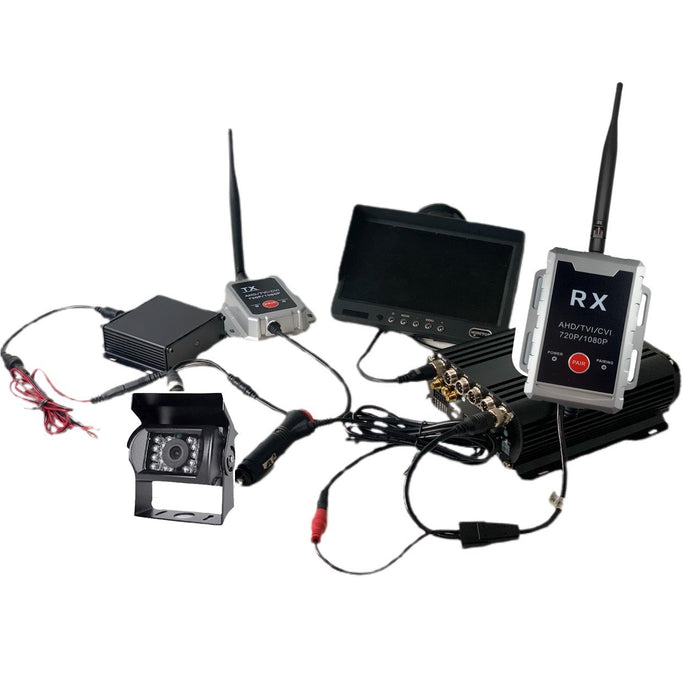

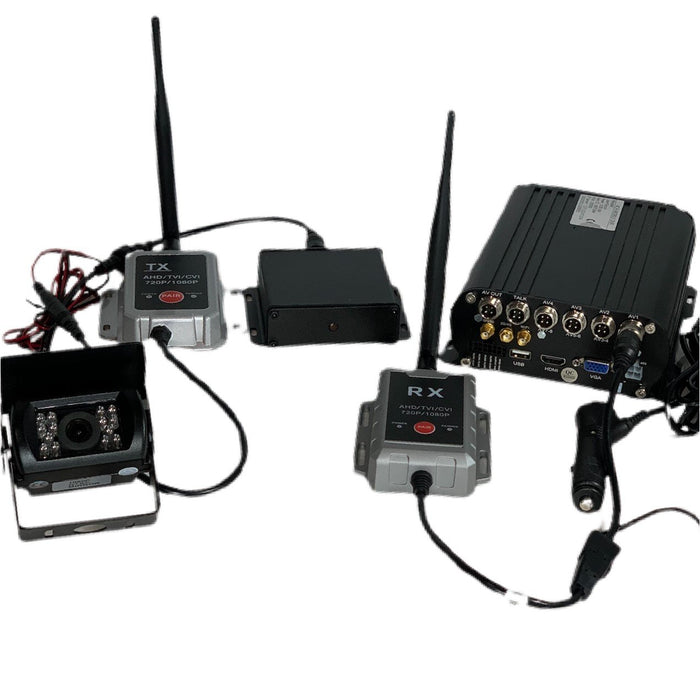

Top Dawg Electronics now offers a 1080P Wireless Transmitter/Receiver that will allow you to make any AHD Wired Camera System from Top Dawg Wireless! You can turn 1 camera into a wireless camera or all cameras into a wireless camera. This product is ideal for customers that want the quality and features of any of our WIRED DVR Systems, such as MDVR 3-8 Cam System, MNVR 3-8 Cam Live Streaming System, 2-4 Cam Wired 1080P System with 10" LCD or any of our Wired backup cams. With this transmitter/receiver system, you can now turn one or more cameras into a wireless camera, even if the camera is a 1080P Camera!

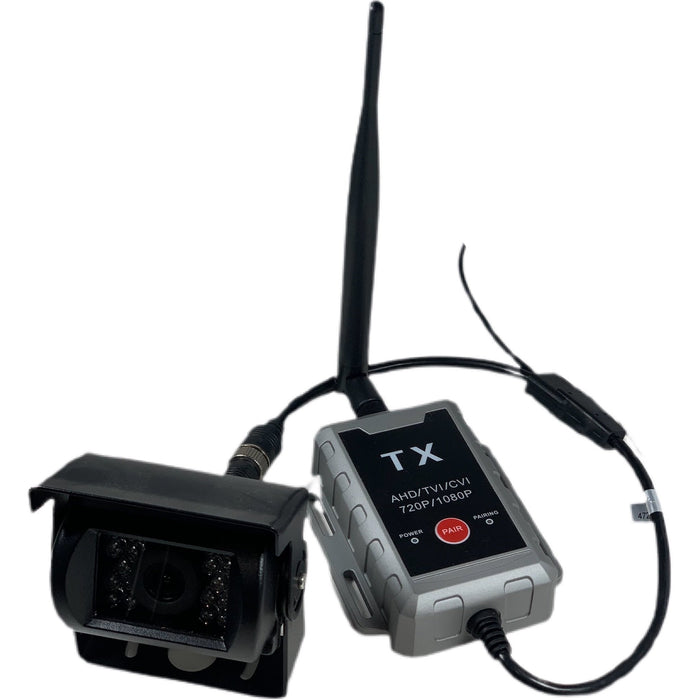

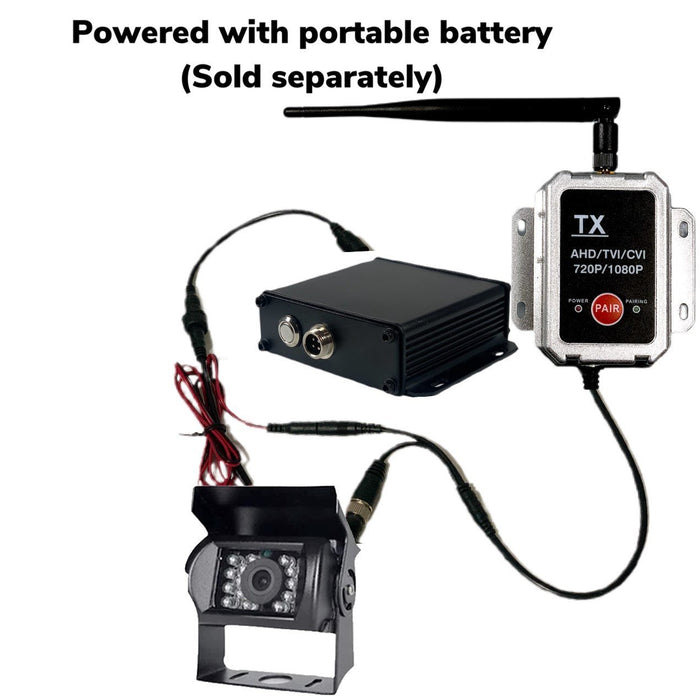

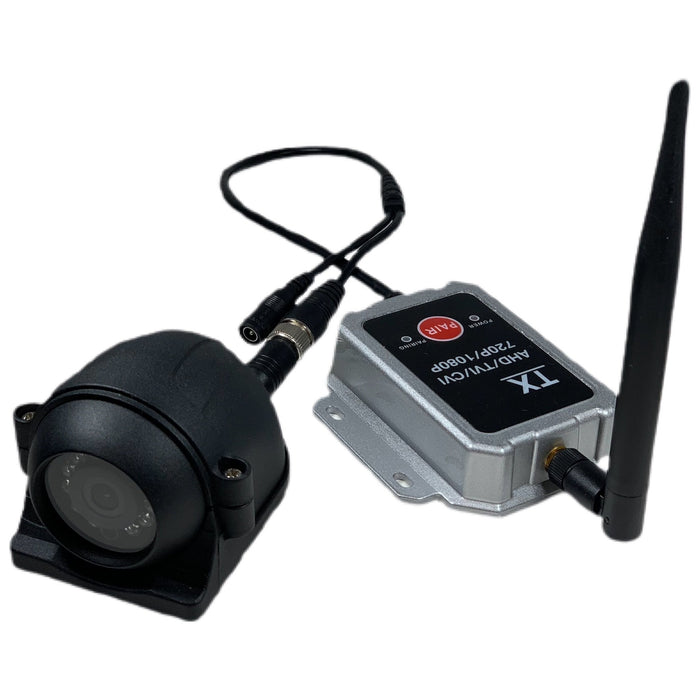

Transmitter (connected to the camera) will need power to transmit wireless signal and to power the camera. You can power the transmitter/camera by connecting to 12v power supply or you can purchase one of our weatherproof rechargeable batteries (click HERE) to add to the transmitter. We also offer a 60lb (can hold up to 60 lbs) heavy duty magnet that can be added to battery, camera and transmitter (click HERE). If you add both a battery and magnet, you can have a completely mobile camera that will allow you to move from location to location in seconds and install in seconds!

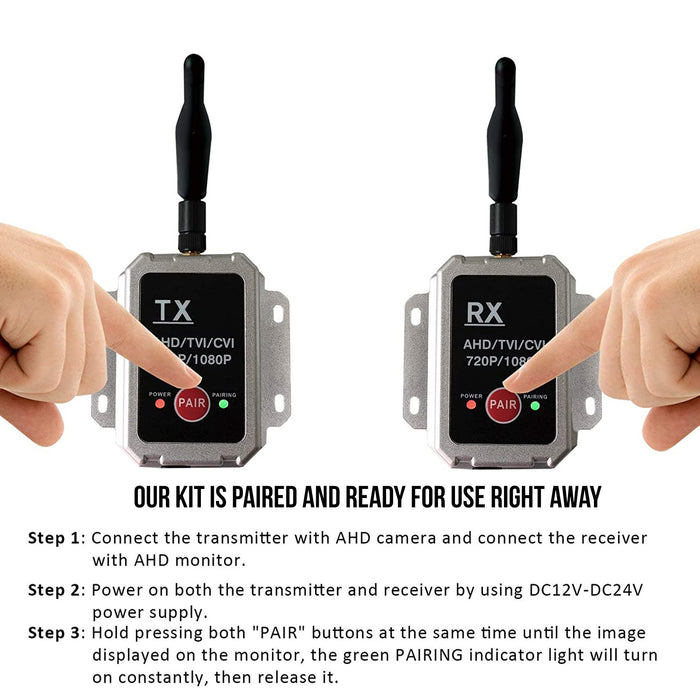

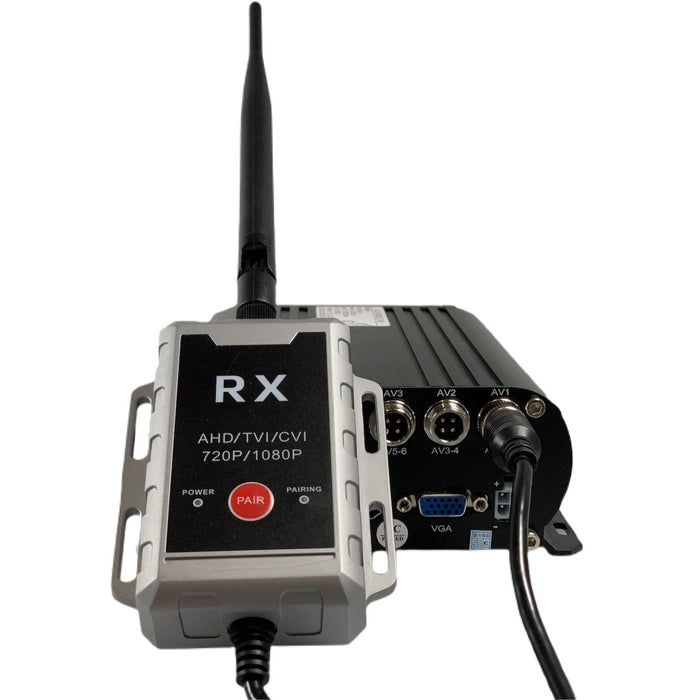

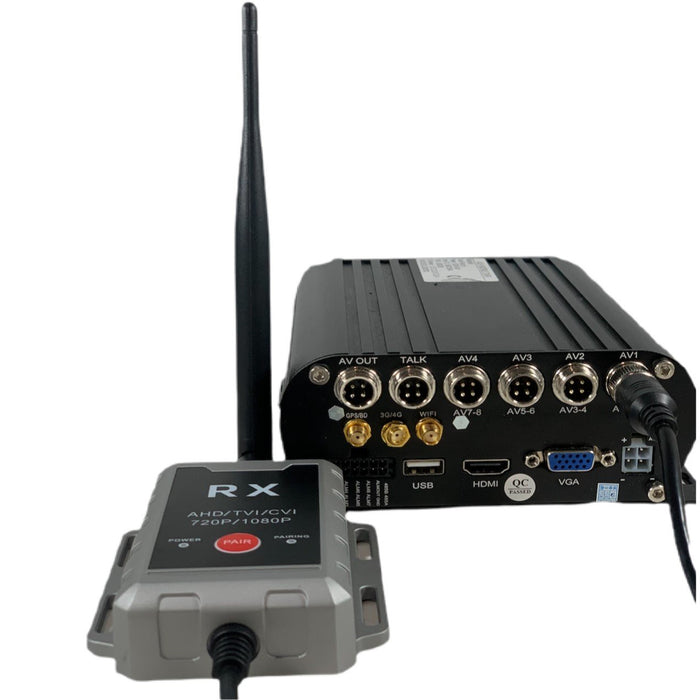

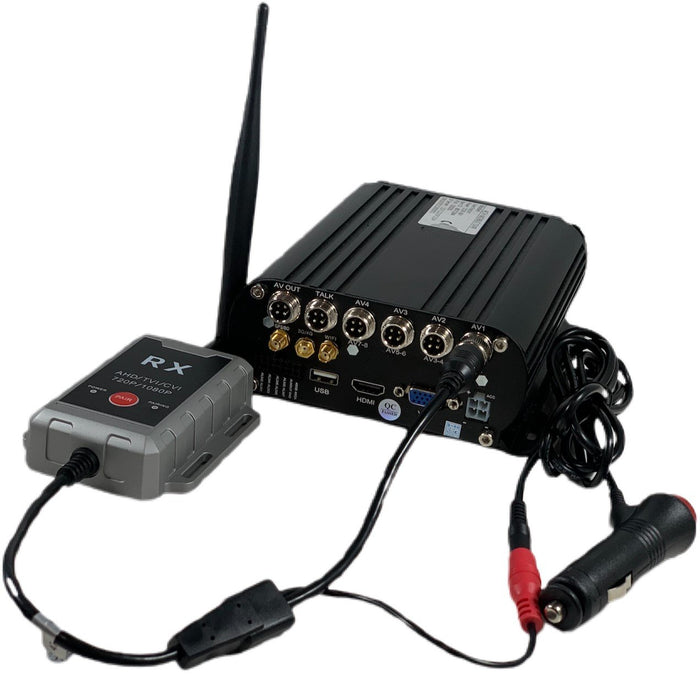

The receiver will be connected to the Blackbox (if you get MDVR/MNVR system) or directly into the LCD. Then you pair the receiver and transmitter the first time you use this system. Going forward, once the transmitter and receiver have power, the camera will connect automatically within a wireless range up to 600 feet
Features & Benefits
- Wireless transmitter and receiver for Top Dawg Electronics Wired cameras
- Can transmit any 720P, 1080P AHD/HDCVI/HDTVi Signals (cannot transmit analog)
- Strong signal - With up to 600 Foot Wireless Range
- Will make adding a camera to trailer simple with less installation time
- Ideal for trailers, RV's and any 2 piece equipment

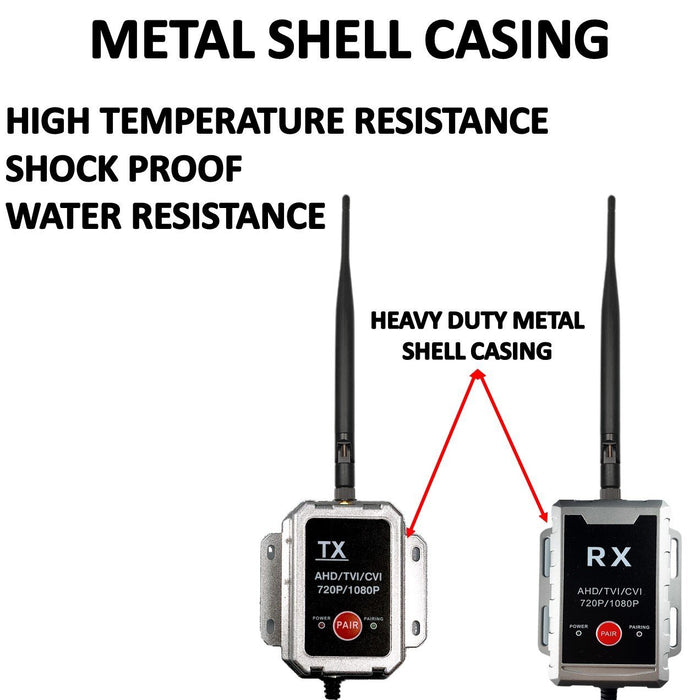

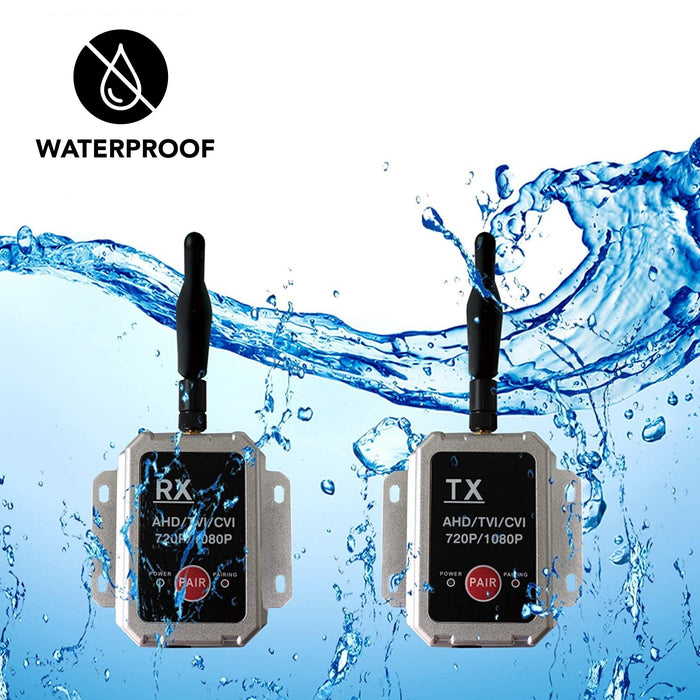

- Heavy Duty weatherproof & waterproof design
. Working voltage: DC12-36V
. TX consumption: 200ma/250ma max
. RX consumption: 200ma
. RF band width: 12 Mbps
. Modulation: QPSK/16QAM
. Tx Channel: 1 channels
. Working range: 500 meter
. Hopping rate: 1200/S
. Power on time: 2S
. Latency: 100ms Max
. Video codec: H.264
. T/R Frequency: 2400-2483.5Mhz
. Output power: 20dB
. Receiving sensitivity: -86dBm@ QPSK
. TX Video in signal format: AHD/TVI/CVI/CVBS Auto detection @1080P/720P/480P
. RX Video output signal format: AHD/TVI/CVI/CVBS Auto detection @720P
. Video Output impedance: 75Ω, Typ.
. Video Output Level: 1Vp-p, Typ.
. Audio Output impedance: 200KΩ, Typ.
. Audio Output Level: 5mv~0.2Vp-p, Typ.
. S/N(340Hz ~ 3.4kHz): 63dB, Min
. THD: 5 %, Max
. Waterproof: IP69K
. Connector: 4-pin plug
. Housing material: Aluminium Diecasting
. Current consumption: 200mA/12V
. Operating temperature: -20°C~80°C
. Operating humidity: 85% RH
. Heavy Duty Wireless Receiver

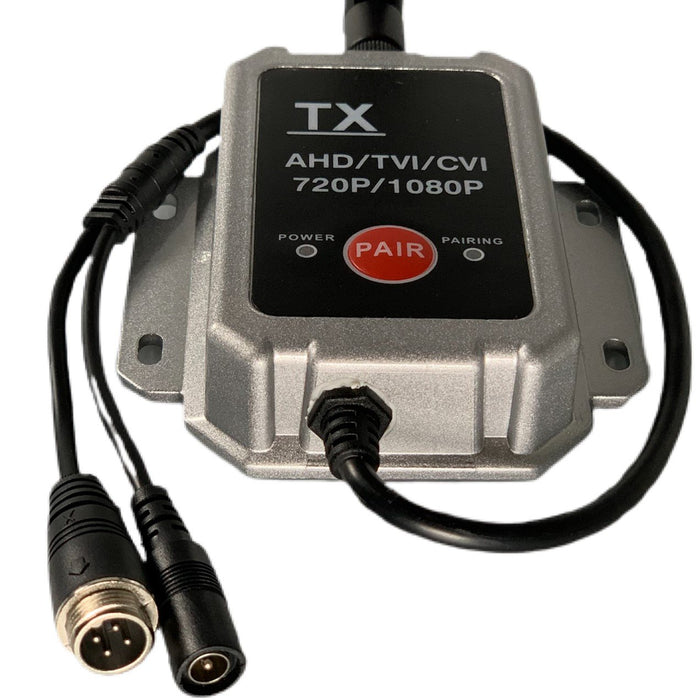

. Heavy Duty Wireless Transmitter
. Both Receiver/Transmitter will connect to standard 4PIN Cables
