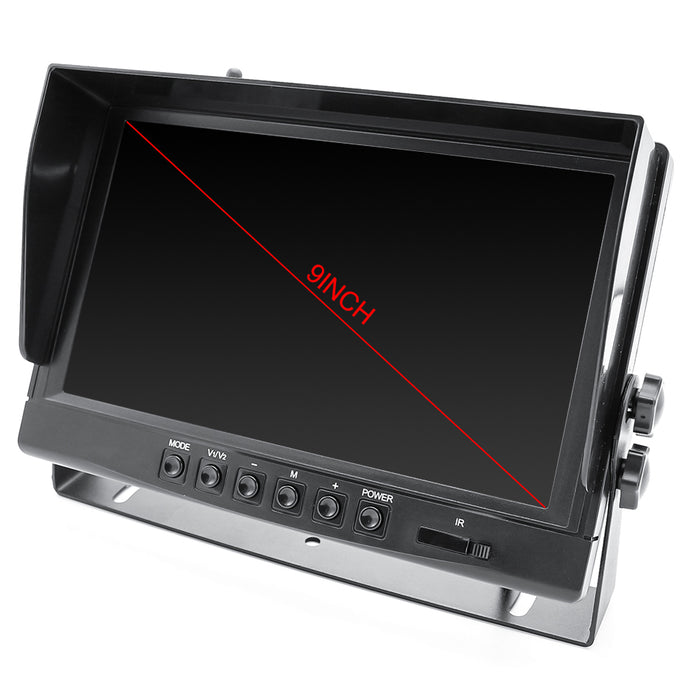

2nd GEN 9” LCD with DVR (only the LCD, no cameras included)
This 9" Widescreen LCD with built-in DIGITAL wireless receiver, is a quad-view monitor. You can select single, dual or QUAD camera viewpoints. 9” monitor includes microSD Card slot which will allow you to record all video that is displayed on the monitor & system includes a remote control.
(Can use up to a 256GB microSD card (NOT INCLUDED)
The Monitor (Quad view and video recorder DVR):
This 9" Widescreen LCD with built-in DIGITAL wireless receiver, is a quad-view monitor. You can select single, dual or QUAD camera viewpoints. 9” monitor includes microSD Card slot which will allow you to record all video that is displayed on the monitor & system includes a remote control. Can use up to a 128GB microSD card (NOT INCLUDED)
The 1" thin LCD sits on a fully adjustable base allowing you to point the screen in almost any direction. It also includes sun shield. Monitor allows for better reception for long range signals with a removable external antenna. LCD menu options allow image rotation, mirror, and non-mirror settings.
Heavy Duty Wireless Cameras with 20 IR Lights (NOT INCLUDED)
Each camera includes a heavy-duty metal framed, water-proof wireless camera. Each camera includes 20 high-powered IR LEDs for up to 20 feet of night vision viewing in total darkness. Camera uses SONY 1/4" high-resolution CCD, with removable external antenna for longer range signal transmissions.
Estimated unobstructed range is 300 feet. Each camera comes with a heavy-duty adjustable steel mounting bracket. The aluminum alloy metal casing comes with 6.8G-force shock resistant and weatherproof professional grade.
- Do you want to turn off the 20 IR lights on the inside dash camera? If the 20 IR lights are reflecting off your windshield, you can upgrade for a small charge to this camera, HERE. It offers a manual button to turn off the IR lights.
- If you are buying a 2-4 Camera system and you want to upgrade one of the cameras so you can turn off IR lights, click HERE
- Monitor Size: 9-inch
- Monitor Specs: 1024x600P
- Contrast: 500:1
- Brightness: 500 cd/m2
- Viewing Angle: 120 Degree Wide Angle
- Aspect ratio: 16:09
- Operating temperature: -20~+60° C, RH 90%
- Storage temperature: -30~+80° C, RH 90%
- Operating frequency: 2400 - 2483.5 MHz
- Transmitting distance: up to 300 ft
- Receiving sensitivity: -78 dBm
- Decompression form: MPEG4
- Emitting frequency: 18dBm
- Transmitting speed: 12 Mbps
- Modulation: 2.4G FSK / GFSK
- TF Card: Max. Up-to 128GB
- Delaying time: 120 ms
- System format: PAL / NTSC
- Energy Consumption: Max. 6W

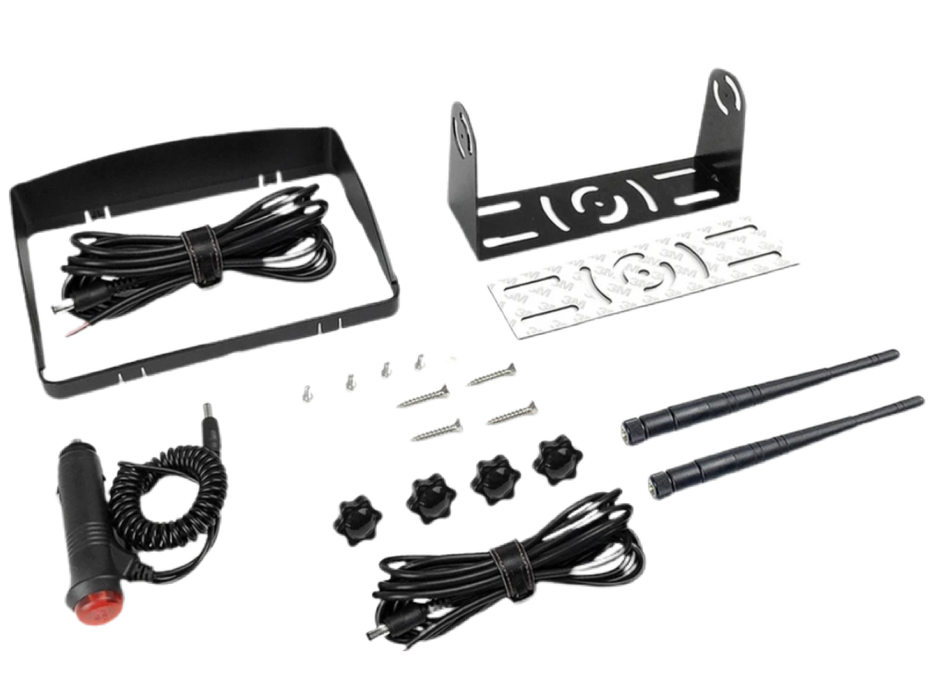

- DigiQuad 9” TFT-LCD Monitor w/ built-in digital receiver
- Rotating dash mounting bracket for LCD
- Sunshield for LCD
- 12v Hard Wire Power Kit for LCD

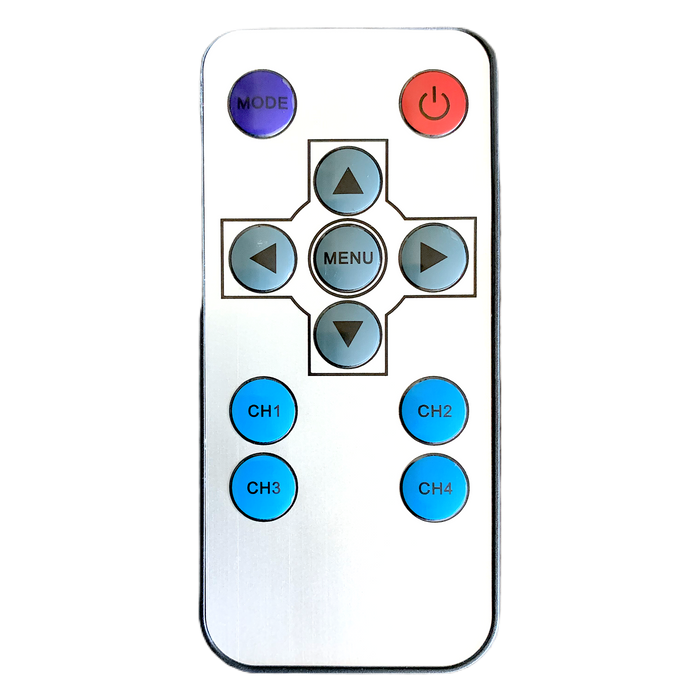

- Remote Control for LCD

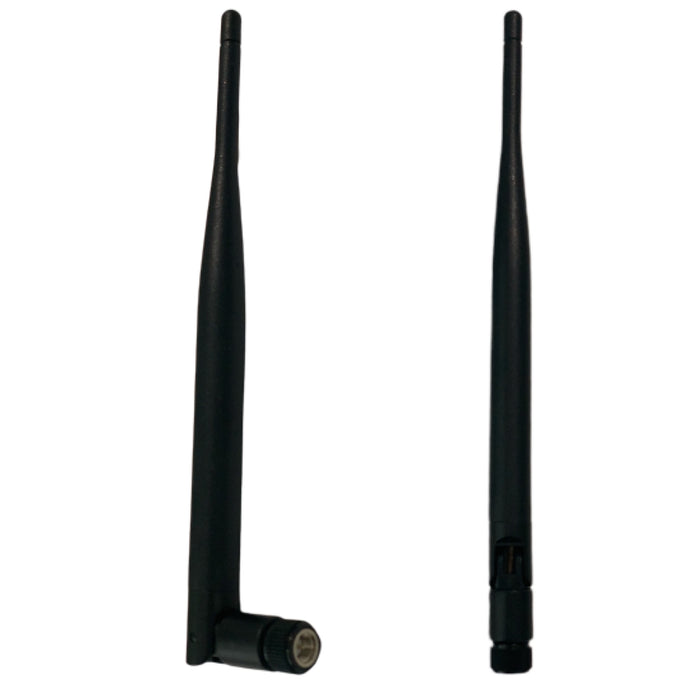

- 2 Large Antennas for LCD
